Product Details:
|
| Application: | Plastic Material Feeding | Color: | Blue |
|---|---|---|---|
| Loading Method: | Negative Loading | Capacity: | 300-2000 Kg /H |
| Voltage: | 380V/50Hz/3Phase As Usual | Conveying Capacity: | 0.3-2T/H |
| Type: | Induction,auto Loader | Product Name: | Auto Loader Machine,plastic Loader,Granule Feeding Machine |
| Absorb Material: | Plastic Ganules | Usage: | Plastic Ganules Conveying Loading Machine,plastic Loader |
| High Light: | Central Vacuum Auto Loader,Plastic Pellets Vacuum Auto Loader |
||
OAL-12X 1-to-more Loader Loading Machine.pdf
OAL- xxxS - xx
① ② ③
① Orste Auto-Loader
② Motor Power (HP)
S: Separate Type
③ 122: 1 to 2 Conveying, 12X: 1 to many Conveying
“One-to-Two or One-to-Many” hopper loader greatly lowers the cost.

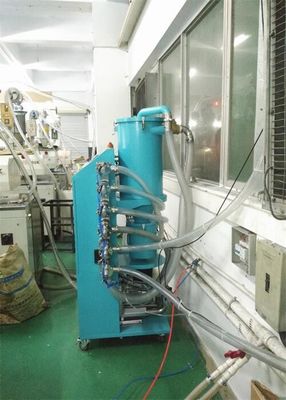

Dust collective chamber features a cyclone separator and a dust collective bin to effectively reduce the load of the filter and the dust content.
Separate dust collector is convenient for dust cleaning.
Complete safety protection function device, like material shortage and motor overloading alarm.
Collective hopper OCH-6/12/24 with standard and insulated version; proportional valve, accumulator auto-cleaning function, Buzzer

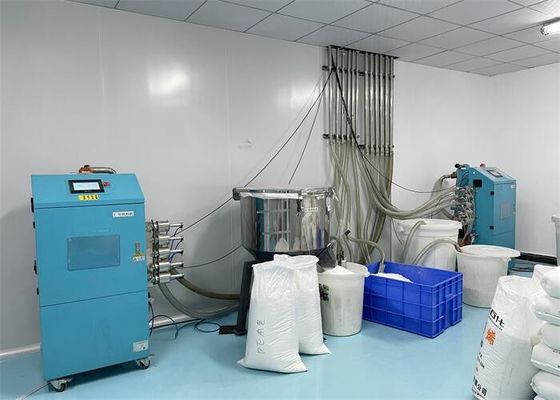

“One-to-Many” separate hopper loaders feature more functions, easy to operate, and convenient to install. Equipped with a high pressure blower and two to twelve OMH/OPH vacuum hoppers, this model is applicable to many dehumidifying and drying machines (dehumidifying dryer “ODD”) or one gravimetric blenders “OGB” to process plastic materials. Besides that, it can also realize the “One-to-Two, One-to-Three or One-to-Many (as many as 12)” way of conveying materials to different molding machines or hopper to greatly lower the cost.
The control device starts the vacuum motor to take out the air in the hopper, the material valve is closed meanwhile, thus negative pressure is created. With the function of negative pressure, material in the storage tank is delivered to the hopper through material pipe. The vacuum motor stops working when the suction time comes out, the material valve is opened by material, then material falls into injection machine or other equipment.
|
Model |
Motor Power |
Conveying Capacity (kg/hr) |
Motor Type |
Vertical Conveying Height (m) |
Horizontal Distance (m) |
Hopper Capacity |
|
|
kw |
hp |
||||||
|
OAL-3S-122 |
2.25 |
3 |
420 |
Induction Type |
9.5 |
30 |
7.5L * 2 |
|
OAL-5S-123 |
3.75 |
5 |
520 |
Induction Type |
11 |
50 |
7.5L * 3 |
|
OAL-7.5S-124 |
5.5 |
7.5 |
850 |
Induction Type |
13 |
75 |
12L * 4 |
|
OAL-10S-12X |
7.5 |
10 |
1000 |
Induction Type |
15 |
100 |
24L * X |
We reserve the right to change parameters without prior notice.
Notes:
(1) Above loading capacity is based on pellet material of 0.65kg/L in bulk density and 3-5mm in diameter.
(2) Power: 3ф, 230/400/460/575VAC, 50/60Hz.
