Product Details:
|
| Material: | Stainless Steel | Function: | For Automatic Loading Of Plastic Material |
|---|---|---|---|
| Color: | Grey Or Blue | Design: | Compact Design |
| Service Life: | More Than 5 Years | Voltage: | 380V/50Hz/3Phase As Usual |
| Condition: | New | Weight: | 55KG |
| Warranty: | 12 Months | Application: | Plastic Material Loading |
| High Light: | Automatic Feeding Plastic Material Hopper Loaders,Granules Plastic Material Hopper Loaders |
||
OAL-S Seperate type Loader Auto Loading Machine.pd...
The control device starts the vacuum motor to take out the air in the hopper, the material valve is closed meanwhile, thus negative pressure is created. With the function of negative pressure, material in the storage tank is delivered to the hopper through material pipe. The vacuum motor stops working when the suction time comes out, the material valve is opened by material, then material falls into injection machine or other equipment.
| Model | Motor Power | Conveying Capacity (kg/hr) | Motor Type | Vertical Conveying Height (m) | Horizontal Distance (m) | Power | Hopper Capacity (L) | |
| kw | hp | |||||||
| OAL-1.5S | 1.1 | 1.5 | 200 | Carbon Brush Type | 4 | 7.5 | 1ф, 230VAC, 50/60Hz | 7.5 |
| OAL-1S | 0.75 | 1 | 300 | Induction Type | 4 | 8 | 3ф, 400VAC, 50/60Hz | 7.5 |
| OAL-2S | 1.5 | 2 | 350 | Induction Type | 7 | 20 | 7.5 | |
| OAL-3S | 2.25 | 3 | 420 | Induction Type | 9.5 | 50 | 7.5 | |
Two auto loaders take the task of feeding plastic materials to 4 pcs of hopper receivers which are installed at the top of a gravimetric blender. In this way, labor cost is greatly reduced and production capacity is significantly improved.

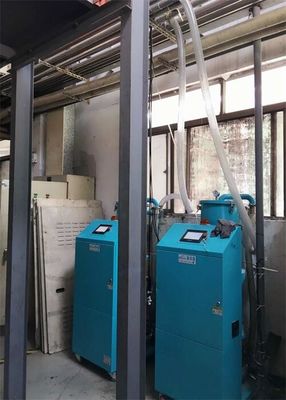

The auto loader is responsible for loading plastic resins from the plastic storage tank beside it and loading the dried plastic resins from the hopper dryer to the feed port of the injection molding machine for products production.
In this application, OAL-1S is placed beside the injection molding machine, and it is equipped with a photo-sensor hopper receiver, which is directly installed at the feed port of the injection machine. A photo-sensor hopper receiver is always applied when the plastic is hygroscopic and it is easy to absorb moisture after drying. In this way, when the dried plastic material is empty in the hopper receiver, the auto loader feed dried material from the dryer with appropriate volume.
With the principle of customer satisfaction first, we take contribution to society as our responsibility and constantly improve the performance of our products to timely seize the latest trend in industry, and maintain the best quality and technological edge of products.
“No Details, No Success.” The key of product quality lies in the details, we focus on details in product production and quality management. Through proactive listening, delicate service, modest attitude, ORSTE Machinery always maintains close contact with its customers.
