Product Details:
|
| Material: | SUS Steel | Application: | Large Sum Plastic Materials |
|---|---|---|---|
| Loading Method: | Motor Running With Screw | Distance: | Less Than 5 M |
| Voltage: | 380V/50Hz/3Phase As Usual | Power(w): | 1.5kw |
| Condition: | New | Warranty: | 12 Months |
| High Light: | Plastic Granules Screw Feeder Conveyor,Plastic Flakes Screw Feeder Conveyor |
||
OSF Screw Feeder for Plastic Recycled Material.pdf...
OSF-xx-x
① ② ③

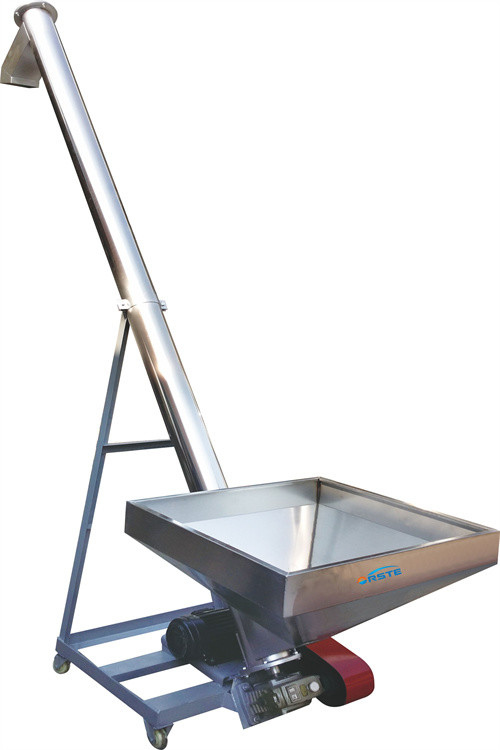

① Orste Screw Feeder
② Outer Dia.of Conveying Pipe (mm)
③ Length of Conveying Pipe (m)
Evenly mix different materials and effectively avoid material stratification during conveying process
Motor-driven screw ensures low noise level in operation
Fully closed conveying line, effectively avoid material contamination in the conveying process
Stainless steel made screw, easy for installation and maintenance
Reverse phase protector is pre-installed to avoid that the motor is incapable of conveying materials because of motor reversal
The length of conveying pipeline can be determined by customer’s needs

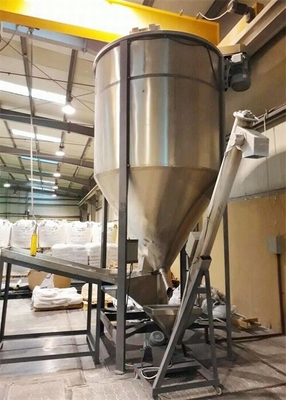

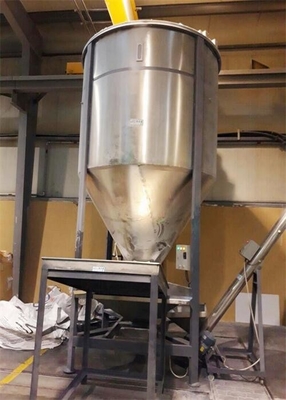

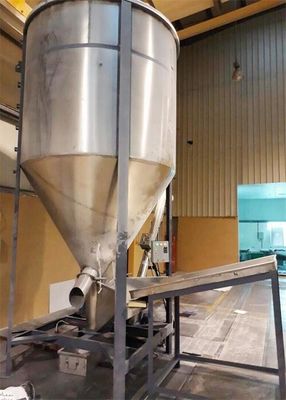

The screw feeder is mainly used with extruders of various specifications to automatically convey plastic materials from storage tank to the hopper. It achieves the automatic feeding through the circulation controlled by material level sensor. It features stable function, labor saving, safe and reliable.
|
Model |
Motor Power (kw) |
Conveying Capacity (kg/hr) |
Pipe Diameter (mm) |
Vertical Conveying Height (m) |
Pipe Length (mm) |
Inclining Angle (o) |
Weight (kg) |
|
OSF-14-3 |
3 |
1000 |
141 |
1.8 |
3 |
45 |
180 |
|
OSF-14-3 |
4 |
1000 |
141 |
2.3 |
195 |
||
|
OSF-16-3 |
5.5 |
1500 |
159 |
3 |
210 |
We reserve the right to change parameters without prior notice.
Notes:
(1) Conveying capacity is based on pellet material of 0.65kg/L in bulk density and 3-5mm in diameter.
(2) Special requirements for “OSF” can be customized.
(3) Power: 3ф, 230/400/460/575VAC, 50/60Hz.
