Product Details:
|
| Material: | Stainless Steel | Function: | Drying Of Hygroscopic Plastic |
|---|---|---|---|
| Color: | Green And White | Application: | Hygroscopic Plastic Material Drying |
| Name: | Drying Machine | Suitable For: | Drying All Kinds Of Plastic Material |
| Usage: | Plastic Industry(dehumidifying Dryer) | Dehumidifier Dew Point: | - 45 ℃ |
| High Light: | PC Dehumidifying Hopper Dryer,PEEK Dehumidifying Hopper Dryer,Honeycomb Desiccant Dryers For Plastics |
||

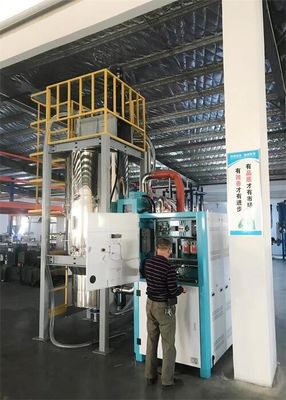

PC PA PEEK Desiccant Dehumidifying Hopper Dryer Honeycomb For Plastic Drying ODD-750H
Plastic Dryer, Plastic Pellet Drying Machine, Dehumidifying Dryer, Industrial Dehumidifier, Industrial Dryer, Dry Air Dryer, Hot Air Dryer, Drying Machine
ODD-xxx/xxxH
① ② ③
① Orste Dehumidifying Dryer
② Hopper Capacity (L)
③ Dehumidifying Air Quantity (m3/hr), H: Honeycomb
1. The ODD dehumidifying dryers use honeycomb dehumidifiers with an elegant semi-integral appearance.
2. Combines the two functions of dehumidifying and drying into one machine, occupy little space which ensures the whole arrange of the workshop.
3. Insulated drying hopper features dry air down-blowing and cyclone exhaust design. This improves drying efficiency and reduces energy consumption while maintaining a steady drying effect.
4. Compact in size for ease of movement.
5. Microprocessor is standard equipment, ensures convenient operation.
The sealed honeycomb rotor is divided into dehumidifying, regenerative and cooling zones in the rotary dehumidifier. Damp and hot air from dry material hopper is blown into rotor after cooled. Moisture from the air is absorbed by rotor and is then absorbed by regeneration heating air. Two strands of airflow function on the rotor. And with the rotation of the rotor, moisture from the air is absorbed and expelled after absorbed regeneration air to form stable low dew-point air, which is dries to the drying temperature and then is blown into drying hopper to closed circle to dry material.
|
Model ODD- |
Regen. Heater (kw) |
Regen. Blower (kw) |
Drying Heater (kw) |
Drying Blower (kw) |
Dry Air Volume (m3/hr) |
Insulated Hopper (L) |
Dimension H*W*D (mm) |
Weight (kg) |
|
20/40H |
4 |
0.2 |
4 |
0.12 |
40 |
20 |
1260*960*860 |
150 |
|
40/40H |
4 |
0.2 |
4 |
0.12 |
40 |
40 |
1260*960*860 |
165 |
|
80/40H |
4 |
0.2 |
4 |
0.12 |
40 |
80 |
1650*1060*860 |
190 |
|
120/80H |
3 |
0.2 |
6 |
0.75 |
80 |
120 |
1780*1220*855 |
250 |
|
160/80H |
3 |
0.2 |
6 |
0.75 |
80 |
160 |
1740*1220*855 |
255 |
|
160/120H |
3 |
0.2 |
6 |
0.75 |
120 |
160 |
1740*1220*855 |
265 |
|
230/120H |
3 |
0.2 |
6 |
0.75 |
120 |
230 |
2010*1220*855 |
295 |
|
300/200H |
4 |
0.4 |
12 |
1.5 |
200 |
300 |
2040*1450*1050 |
420 |
|
450/200H |
4 |
0.4 |
12 |
1.5 |
200 |
450 |
2040*1450*1050 |
550 |
|
600/400H |
7.2 |
0.75 |
18 |
3.75 |
400 |
600 |
2380*1745*1255 |
620 |
|
750/400H |
7.2 |
0.75 |
18 |
3.75 |
400 |
750 |
2610*1745*1255 |
650 |
|
900/700H |
10 |
1.5 |
24 |
5.5 |
700 |
900 |
2640*2140*1380 |
830 |
|
1200/700H |
10 |
1.5 |
24 |
5.5 |
700 |
1200 |
3070*2140*1380 |
870 |
1) Turn off the main switch and control switch and unplug the cord from power supply before service and maintenance.
2) Be sure not to modify electrical wiring or reassemble the electrical components inside of the control box.
3) Always refer to the electrical diagram of this manual to check and maintain the electrical wiring problems.
4) Service and maintenance of the electrical parts should only be carried out by qualified electricians.
