PCTG TPU PEEK LCP Dehumidifying Hopper Dryer Honeycomb Rotor Type ODD-H PA Drying​

Plastic Dryer, Dehumidifier, Dehumidifying Dryer, Plastic Resin Drying Machine, Industrial Dryer, Dry Air Dryer, Hot Air Dryer, Drying Machine

NAMING PRINCIPLE of Plastic Resin Drying Machine

ODD-xxx/xxxH

①        ②     ③

① Orste Dehumidifying Dryer

② Hopper Capacity (L)

③ Dehumidifying Air Quantity (m³/hr), H: Honeycomb

FEATURES of Plastic Resin Drying Machine

1.         The ODD dehumidifying dryers use honeycomb dehumidifiers with an elegant semi-integral appearance.

2.         Combines the two functions of dehumidifying and drying into one machine, occupy little space which ensures the whole arrange of the workshop.

3.         Insulated drying hopper features dry air down-blowing and cyclone exhaust design. This improves drying efficiency and reduces energy consumption while maintaining a steady drying effect.

4.         Compact in size for ease of movement.

5.         Microprocessor is standard equipment, ensures convenient operation.

FUNCTIONAL SCHEME of Plastic Resin Drying Machine

The sealed honeycomb rotor is divided into dehumidifying, regenerative and cooling zones in the rotary dehumidifier. Damp and hot air from dry material hopper is blown into rotor after cooled. Moisture from the air is absorbed by rotor and is then absorbed by regeneration heating air. Two strands of airflow function on the rotor. And with the rotation of the rotor, moisture from the air is absorbed and expelled after absorbed regeneration air to form stable low dew-point air, which is dries to the drying temperature and then is blown into drying hopper to closed circle to dry material.

PARAMETERS of Plastic Resin Drying Machine

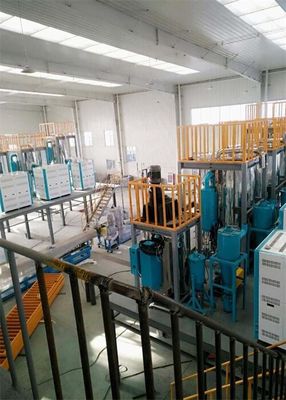

Application Cases of Plastic Resin Drying Machine

Matters Needing Attention

Electrical installation of the machine should be done by qualified electricians.

Connecting the cooling water (if needed) after the machine is installed in a appointing place, make sure the inlet and outlet water pipe is in good condition.

Before connecting to AC Power Source, turn power switch to OFF position. While AC power source is connected, make sure specifications and overload protection rating of the power switch are suitable and reliable. When the machine is under care or maintenance, turn off both power switch and automatic operation switch.

Company’s Main Products

ORSTE’s large scale Central Material Conveying System and cooling water circulation system including three major systems of centralized raw material drying, water temperature control and metering & mixing, are extensively applied in plastic injection molding industry.

The main products of the company are a series of high-tech products including Desiccant Honeycomb Dehumidifiers, Hopper Dryers, “Three-in-one” Compact Dryers, Auto / Semi-auto Weighing & Packing Machine (for plastic 25kg packages), Auto-loaders, Mold Temperature Controllers, Industrial Chillers, Mixers and Blenders, Masterbatch Dosers, Granulators, and Vibrating Screens.
