Plastic Industrial Desiccant Honeycomb Rotor Molecular Dehumidifier Hopper Dryer

Plastic Dryer, Dehumidifier, Dehumidifying Dryer, Industrial Dehumidifier, Industrial Dryer, Dry Air Dryer, Hot Air Dryer, Drying Machine

NAMING PRINCIPLE of PC Dehumidifying Dryer

ODD-xxx/xxxH

①        ②     ③

① Orste Dehumidifying Dryer

② Hopper Capacity (L)

③ Dehumidifying Air Quantity (m³/hr), H: Honeycomb

FEATURES of PC Dehumidifying Dryer

1.         The ODD dehumidifying dryers use honeycomb dehumidifiers with an elegant semi-integral appearance.

2.         Combines the two functions of dehumidifying and drying into one machine, occupy little space which ensures the whole arrange of the workshop.

3.         Insulated drying hopper features dry air down-blowing and cyclone exhaust design. This improves drying efficiency and reduces energy consumption while maintaining a steady drying effect.

4.         Compact in size for ease of movement.

5.         Microprocessor is standard equipment, ensures convenient operation.

FUNCTIONAL SCHEME of PC Dehumidifying Dryer

The sealed honeycomb rotor is divided into dehumidifying, regenerative and cooling zones in the rotary dehumidifier. Damp and hot air from dry material hopper is blown into rotor after cooled. Moisture from the air is absorbed by rotor and is then absorbed by regeneration heating air. Two strands of airflow function on the rotor. And with the rotation of the rotor, moisture from the air is absorbed and expelled after absorbed regeneration air to form stable low dew-point air, which is dries to the drying temperature and then is blown into drying hopper to closed circle to dry material.

PARAMETERS of PC Dehumidifying Dryer

Machine Details of PC Dehumidifying Dryer

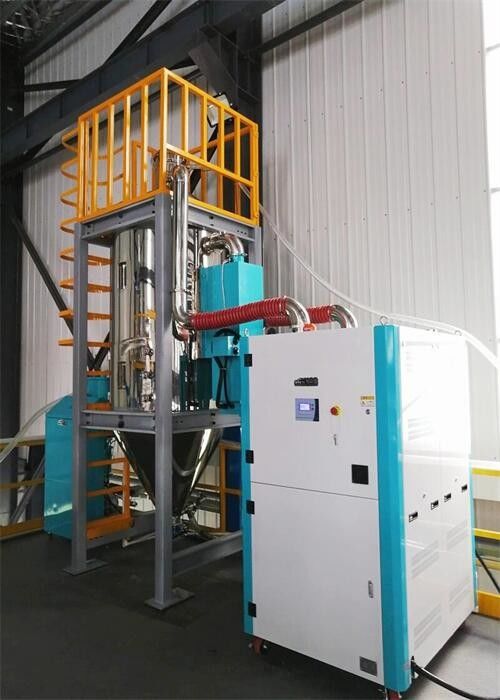

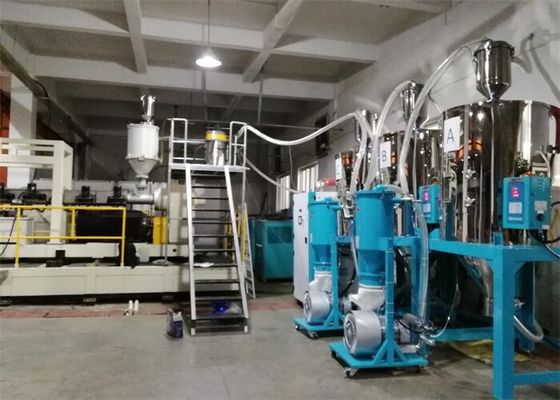

Inner structure of ORD-H dehumidifier, in which honeycomb rotor which is the key part of the machine, provides the dry air for the hopper dryer, the plastic materials in the hopper dryer is dried continuously for some time, and then be loaded to the other container or to the Injection machine for products production by the vacuum auto loader. ODD-H dehumidifying dryers are always applied with auto loader to form a whole drying & feeding system for plastic processing.

The part below is the honeycomb desiccant rotor

Exemption Clause

The following statements clarify the responsibilities and regulations born by any buyer or user who purchases products and accessories from ORSTE (including employees and agents).

ORSTE is exempted from liability for any costs, fees, claims and losses caused by reasons below:

1. Any careless or man-made installations, operation and maintenances upon machines without referring to the Manual prior to machine using.

2. Any incidents beyond human reasonable controls, which include man-made vicious or deliberate damages or abnormal power, and machine faults caused by irresistible natural disasters including fire, flood, storm and earthquake.

3. Any operational actions that are not authorized by ORSTE upon machine, including adding or replacing accessories, dismantling, delivering or repairing.

4. Employing consumables or oil media that are not appointed by ORSTE.

Note of Maintenance

1) Turn off the main switch and control switch and unplug the cord from power supply before service and maintenance.

2) Be sure not to modify electrical wiring or reassemble the electrical components inside of the control box.

3) Always refer to the electrical diagram of this manual to check and maintain the electrical wiring problems.

4) Service and maintenance of the electrical parts should only be carried out by qualified electricians.
